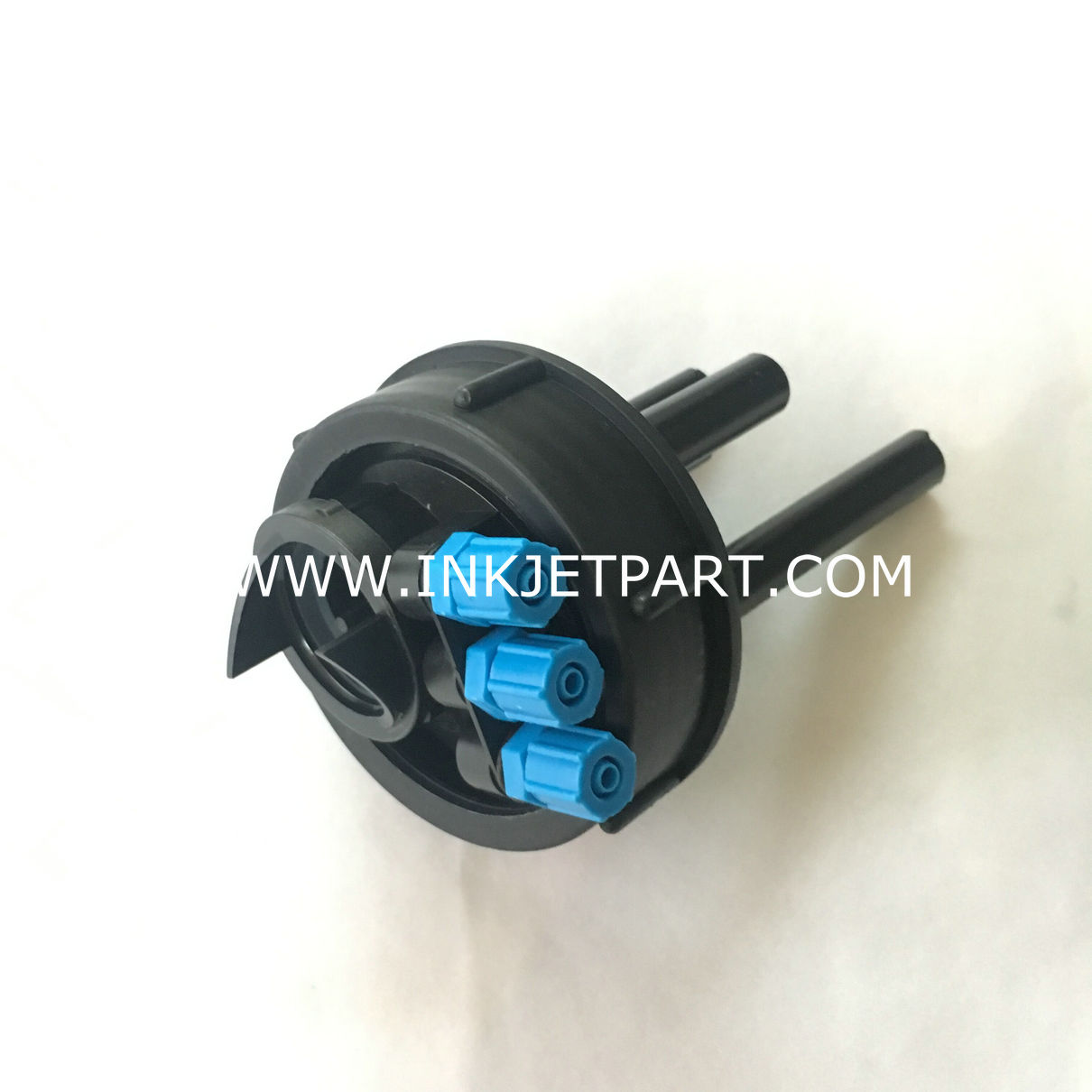

This spare is used for Domino A series/A+ series inkjet printer. The three connectors on the ink manifold are connected to the 6MM pipe, the left port is connected to pump head, the right port is connected to three-way connector, and the middle port is connected to solvent collecting tank (if there is a condenser, first go through the condenser then connect solvent collecting tank ).
Description:Domino small contineous inkjet printer parts 37753 ink manifold
| Description | Description |
| 37727LCD DISPLAY ASSY EUROPE GREEN COLOUR | 36829 STROBE LED PP ASSY |
| 14831MAIN FILTER 5MIC | DB26798 PLATE MOUNING |
| 14833DAMPER FILTER | DB26856 DRIVE ROD ASSY 128KHZ |
| 37940INLINE FILTER 10MIC | DB26868 NUT DRIVE ROD CLAMP |
| 29273SOLVENT FILTER 10MIC | DB26871 RETAINER FOR DOMINO A SERIES |
| 29265GUTTER FILTER 20MIC | DB26898 DRIVE ROD CAP FOR DOMINO A SERIES |
| 26747 DRIVE ROD ASSY 62KHZ | DB28161 PRINTHEAD MOUNTING PLATE INKJET PRINTER |
| 14735DOMINO SELENOID VALVE-FOR DOMINO GP | DB36700 STD PRINTHEAD ASSY,CONDUIT |
| 36703 HV+- PLATES | DB36702 CONDUIT 3M, STD ASSY FOR DOMINO A SERIES |
| 23511 PUMP GEAR REPAIR SERVICE KIT | DB36706 TUBE CONNECTOR GUTTER (BLACK) |
| 25112PCB ASSY FRONT PANEL | DB36715 SENSOR TUBE STD ASSY |
| 25115INK SYSTEM PCB | DB36717 CHASSIS STD FOR DOMINO A-SERISE |
| 37726MEMBRANE KEYBOARD ASSY(FOR 37727) | DB36718 DROP GENERATOR MOUNT |
| 36675A SERIES EUROPEAN MEMBRANE FOR 13537 | DB36719 ADJUSTING SCREW |
| 36610DUAL HEAD PUMP WITH MOTOR | DB36720 ADJUSTING SHAFT DB36721 SCREW, LOCKING |
| 37772NOZZLE VENTURI AASY | DB36722 CAM |
| 37754MAKE UP MANIFOLD ASSY WITHOUT SENSOR | DB36723 GUTTER TUBE |
| 37753INK MAINFOLD ASSY WITH SENSOR | DB36724 GUTTER TUBE CLAMP BLOCK |
| 36994HEATER CERAMIC SPARES KIT A SERIES | DB36726 PIVOT DROP GENERATOR MOUNT F |
| 67656FAN ASSY FOR A100,A200,A300 | DB36727 GROMMET RETAINING SCREW |
| 37731PRESSURE TRANSDUCER ASSY | DB36728 CHASSIS END BOX FOR DOMINO A SERIES |
| 37758POWER SUPPLY FOR A SERIES | DB36729 END BOX COVERFOR DOMINO A SERIES |
| 37748POSITIVE AIR PUMP ASSY FOR DOMINO A SERIES | DB36730 END BOX COVER SEAL DOMINO A SERIES |
| 36828STROPE LED A SERIES | DB36734 CHASSIS DOVETAIL FOR DOMINO A SERIES |
| 2674375 MICRON NOZZLE FOR A SERIES | DB36740 CHASSIS PINPOINT FOR DOMINO A-SERIES |
| 2682860 MICRON NOZZLE FOR A SERIES | DB36741 HOLSTER PINPOINT FOR DOMINIO A SERIES |
| 2695350 MOCRON NOZZLE FOR A SERIES | DB36743 DEFLECTOR PLATE PP ASSY |
| 2682940 MICRON NOZZLE FOR A SERIES | DB36745 PRINTHEAD PP, 3M, STANDARD |
| 37805AIR FILTER FOR A100 | DB36820 GUTTER TUBE ADAPTOR |
| 37708AIR FILTERFOR A200, A300 | DB36827 SENSOR PINPOINT ASSEMBLY(PINPOINT) |
| 45411CHARGE ELECTRODE ASSY | DB36836 EHT SENSOR 3M ASSY |
| 36731HOLSTER STD | DB36837 EHT SENSOR 6M ASSY |
| 14225LIP SEAL RESERVOIR MANIFOLD | DB36994-PC0205 HEATER WITHOUT HEATER |
| 36991WASH STATION MTG BRACKET ASSY | DM36717-PC0188 SCREW KIT |
| 14173FITTING | DM36827-PY0226 |
| 14179A SERIES CODEBOX FITTING | DM36836-PC1000 CHARGE ELECTRODE SENSOR 3M ASSY |
| 37751 PELTIER OPTION KIT | DM36836-PC1190 EHT SENSOR ASSY 4M(RED) |
| 67617GUTTER TUBE CLAMP KIT | DM36836-PC1191 EHT SENSOR ASSY 4M(BLUE) |
| 37711PCB ASSY CONTROL A SERIES | DM36836-PC1192 EHT SENSOR ASSY 4M(BLACK) |
| 14780SOLENOID VALVE 2WAY 24V3.8W | 45191 THERMISTOR KIT CB3/S6（SPARES） |
| 1460020 MICRON FILTER PLEATED | EA0066 CONNECTION FOR CHARGE ELECTRODE |
| 1-0160400SPEUROPEAN KEYBOARD ASSEMBLY | 45426 C/E CARRIER MOULDING PP MACHINE |
| 3-0160036SPA+ POWER SUPPLIER | 45431 CHARGE ELECTRODE ASSY 40U MK3 |
| 1-0360015SP AIR FILTER KIT FOR DOMINO A-GP | 45462 DROP GEN 75U (SPARES) FOR DOMINO A SERIES |
| 4-0340002SPPUMP HEAD FOR DOMINO A-GP,/A120I/A220I | 45463 DROP GEN ASSY 40U & 138BK |
| 37778 USER KIT PORT KIT A SERIES | 50023 BRASS PINS CONNECTION FOR DOMINO A SERIES |
| DM-PP0028 RECYCLING VENTURI FOR A SERIES | 50032 MAGNIFIER ON HOLSTER FOR DOMINO A SERIES |
| PC1154 SPRING COMPRESSION 1PSI ST.ST ASSY | 67813 GUTTER TUBE ADAPTOR(OPAOUE) |
| PC1155 SPRING COMP.50-150 PSI ST.ST ASSY | 37752 INK MANAGEMENT BLOCK ASSY |
| 14186 SPRING COMPRESSION 1PSI ST.ST | DM-37753-PY0101 MANIFOLD ASSY CONNECTOR |
| DM-14780-PP0062 COIL FOR SOLENOID VALVE | 67808 OPAQUE INK MAN BLOCK ASSY |
Packing: In box,carton or as customer’s requirement.
Shipping:By sea,by air,DHL,FEDEX,TNT,EMS,UPS,MAIL or as buyer’s requirements.
